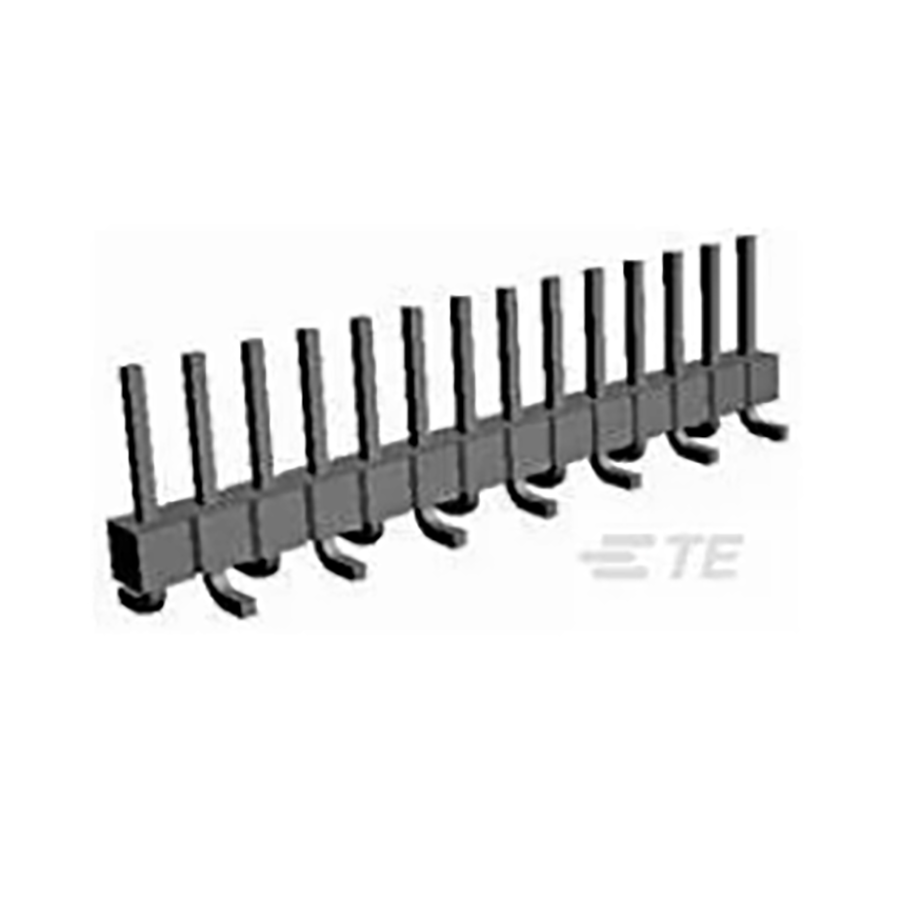

1241150-8
Manufacturer:
TE Connectivity
Mfr.Part #:
1241150-8
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Breakaway Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | CuZn |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Working Voltage | 250 V |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Connector Type | Header, Breakaway |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polycyclohexylenedimethylene |
| Contact Style | Pin |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
| Keyed | No |
| Plating Thickness | 800 nm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 5.8 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
Stock: 811
Distributors
pcbx
pcbxUnit Price$4.06177
Ext.Price$4.06177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.06177 | $4.06177 |
| 10 | $3.45477 | $34.54770 |
| 25 | $3.41043 | $85.26075 |
| 50 | $3.36671 | $168.33550 |
| 100 | $2.28437 | $228.43700 |
| 300 | $2.28437 | $685.31100 |
| 500 | $2.28437 | $1142.18500 |
| 1000 | $2.27753 | $2277.53000 |
